Liquid Argon Dewar
Brand :HEBEI RUNFENG
Product origin :China
Delivery time :0~35days
Supply capacity :3000 pcs per month
Liquid Argon Dewar adopts multilayer high vacuum insulation technology. The product has better thermal insulation performance and stable vaccum maintance period. LAr Dewar bottles can be installed and produced according to customer-specified accessories. At the same time, we can provide booster pumps, vaporizers and other relating facilities in use.
The Dewars are mirror-polished. The exquisite shape design details reflect the unique ingenuity of the products, and fully demonstrate the image, quality and value of Hebei Runfeng.
Product Description
Liquid Argon Dewar adopts multi-layer winding high vacuum technology, and the product has better thermal insulation performance. Dewar bottles can be installed and produced according to customer-specified accessories. At the same time, we can provide booster pumps, vaporizers and other supporting facilities. The products are mirror-polished, and the exquisite shape design details reflect the unique ingenuity of the products, and fully demonstrate the image, quality and value of Hebei Runfeng.
Dewar Cylinder Main Technical Parameters:
Full Volume:50L/80L/100L/175L/195L/210L/230L/240L/410L/450L/500L/1000L
Work Pressure: 1.37MPa/2.3MPa/2.88MPa/3.45MPa
Inner Tank Design Temperature: -196
Shell Tank Design Temperature: -20℃~+50℃
Insulation: Vacuum with Multi-layer Wrapped
Stored Medium: LO2,LN2,LAr,LCO2,LNG
Inner Tank Material: SS304 08 or SA240
Shell Tank Material: Q345R or SS304 08

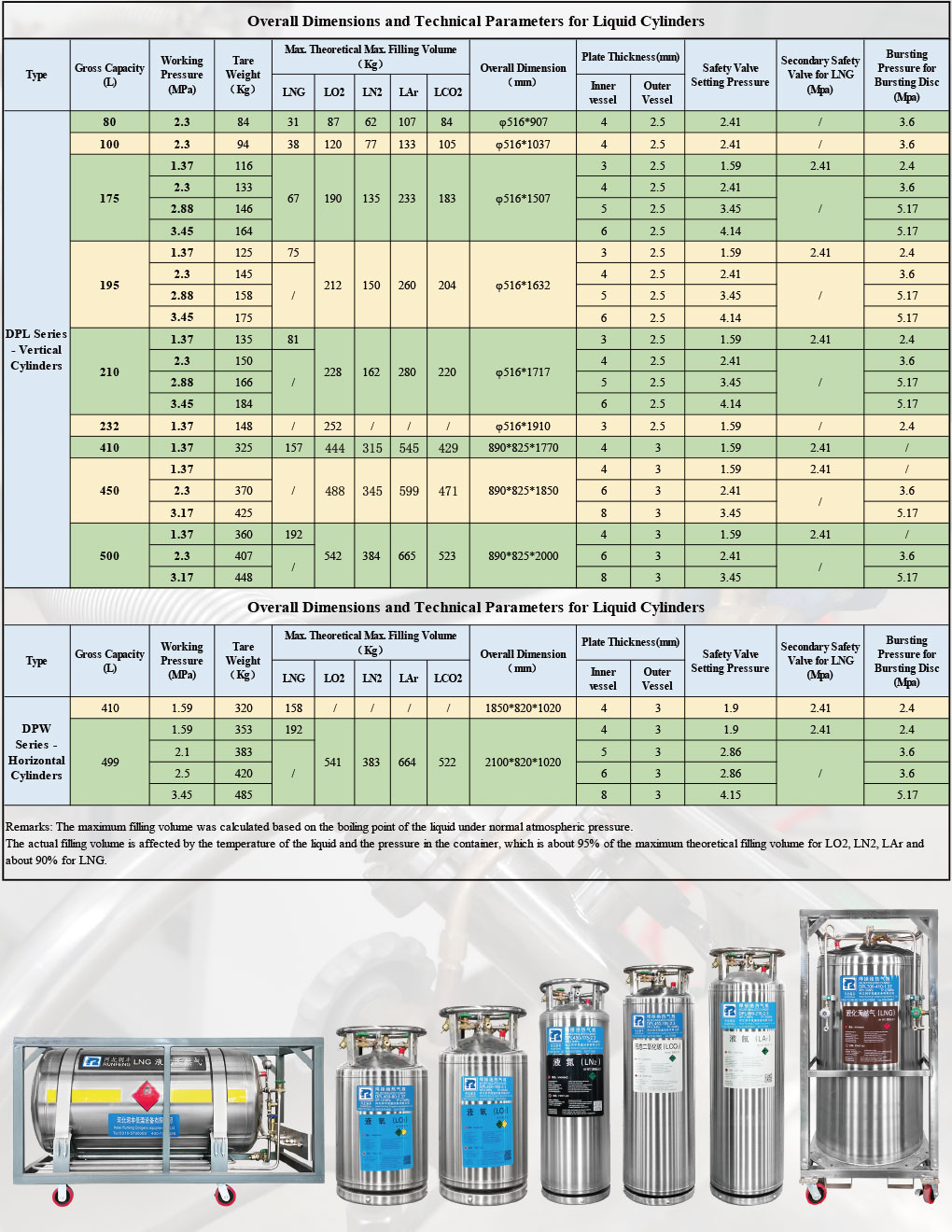

Specification
| Overall Size and Main Technical Parameters | |||||||||||||||
| Type | Nominal volume (L) | Working pressure (MPa) | Empty weight （Kg） | Maximum theoretical liquid filling capacity（Kg） | Gas cylinder size （mm） | Safety valve （MPa） | Rupture disk （MPa） | Filling weight（Kg） （±2KG） | |||||||
| LNG | LO2 | LN2 | LAr | LCO2 | LO2 | LN2 | LAr | LCO2 | |||||||
| DPL Series - Vertical Cylinders | 50 | 2.3 | 76 | 19 | 53 | 37 | 65 | 51 | φ516*747 | 2.62 | 3.6 | 50 | 34 | 60 | / |
| 80 | 2.3 | 85 | 31 | 87 | 62 | 107 | 84 | φ516*907 | 2.62 | 3.6 | 80 | 56 | 98 | 78 | |
| 100 | 2.3 | 95 | 38 | 120 | 77 | 133 | 105 | φ516*1037 | 2.62 | 3.6 | 100 | 70 | 123 | 97 | |
| 175 | 1.37 | 116 | 67 | 190 | 135 | 233 | 183 | φ516*1507 | 1.59 | 2.4 | 175 | 121 | 213 | 169 | |
| 2.3 | 133 | 2.41 | 3.6 | ||||||||||||
| 2.88 | 146 | 3.45 | 5.17 | ||||||||||||
| 3.45 | 164 | 4.14 | 5.17 | ||||||||||||
| 195 | 1.37 | 125 | 75 | 212 | 150 | 260 | 204 | φ516*1632 | 1.59 | 2.4 | 196 | 136 | 239 | 190 | |
| 2.3 | 145 | / | 2.41 | 3.6 | |||||||||||
| 2.88 | 158 | 3.45 | 5.17 | ||||||||||||
| 3.45 | 185 | 4.14 | 5.17 | ||||||||||||
| 210 | 1.37 | 135 | 81 | 228 | 162 | 280 | 220 | φ516*1717 | 1.59 | 2.4 | 207 | 144 | 252 | 200 | |
| 2.3 | 150 | / | 2.41 | 3.6 | |||||||||||
| 2.88 | 166 | 3.45 | 5.17 | ||||||||||||
| 3.45 | 191 | 4.14 | 5.17 | ||||||||||||
| 230 | 2.01 | 180 | 85 | 244 | 170 | 298 | 237 | φ666*1333 | 2.41 | 3.6 | 236 | 164 | 288 | 229 | |
| 240 (small cart) | 1.37 | 185 | 84 | 242 | 168 | 295 | 234 | 800*800*1248 | 1.59 | 2.41 | 242 | 168 | 295 | 234 | |
| 2.3 | 213 | / | 2.62 | 3.6 | |||||||||||
| 3.17 | 240 | 3.45 | 5.17 | ||||||||||||
| 410 | 1.37 | 325 | 157 | / | / | / | / | 890*870*1770 | 1.59 | / | 413 | 287 | 504 | 400 | |
| 450 | 1.37 | / | 488 | 345 | 599 | 471 | 890*870*1850 | 1.59 | / | 453 | 315 | 553 | 439 | ||
| 2.3 | 370 | 2.41 | 3.6 | ||||||||||||
| 3.17 | 425 | 3.45 | 5.17 | ||||||||||||
| 500 | 1.37 | 360 | 192 | 542 | 384 | 665 | 523 | 890*870*2000 | 1.59 | / | 486 | 338 | 593 | 471 | |
| 2.3 | 407 | / | 2.41 | 3.6 | |||||||||||
| 3.17 | 448 | 3.45 | 5.17 | ||||||||||||
| 1000 | 2.3 | 1033 | / | / | 454 | 904 | 891 | φ1200*2182 | 2.6 | 3.6 | 1009 | 702 | 1231 | 978 | |
| 3.45 | 297 | 764 | 828 | 4.0 | 5.4 | ||||||||||
| DPW Series - Horizontal Cylinders | 410 | 1.59 | 342 | 158 | / | / | / | / | 1850*820*1020 | 1.9 | 2.4 | 413 | 287 | 504 | 400 |
| 499 | 1.59 | 353 | 192 | 541 | 383 | 664 | 522 | 2100*820*1020 | 1.9 | 2.4 | 503 | 350 | 614 | 488 | |
| 2.1 | 406 | / | 2.86 | 3.6 | |||||||||||
| 2.5 | 420 | 2.86 | 3.6 | ||||||||||||
| 3.45 | 510 | 4.15 | 5.17 | ||||||||||||
| 1000 | 1.59 | 585 | / | 1664 | 1330 | 1882 | / | 2100*1172*1400 | 1.9 | 2.4 | 977 | 679 | 1192 | 947 | |
| Note: The maximum filling capacity is calculated based on the boiling point of the liquid under normal atmospheric pressure. The actual filling capacity is affected by the liquid temperature and pressure inside the container, which is about 95% of the maximum theoretical filling capacity, and about 90% for natural gas. | |||||||||||||||
Main Features
1.Special stainless steel materials
2.Both gas and liquid can be used, tanks with gas valve and liquid valve.
3.Vertical type tanks capacity with 175L 195L 210L , over 20pcs can be customized
4.Tank shipped with 1pcs soft hose and 2pcs valves.
5.Tanks with ASME certificate.
Detailed Images
S30408 Refined Polish Each of our cylinder must strictly go through degreasing and refined polish. | Digitail level gauge Optional we provide digital level gauge for option, which is show by precision percentage. | Anti-Shock Rubber Cushion The thicken rubber cushion can greatly prevent the inner container from any sudden shock and bufferthe impact. |
25 layers of Vacuum insulated quilt We use 25 layers of mutiple thermal insulated quilt to ensure the vacuum effectiveness. | Protective ring. Each of our cylinder has two protective rings to protect the brass vaporizer coils and pressure built coils from any deformation | Firm Foundation Structure. Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation. |
Certifications
ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015,ISO13485:2016, ISO14001:2015, ISO45001:2018
