LNG Dewar bottles

Brand :HEBEI RUNFENG

Product origin :China

Delivery time :0~35days

Supply capacity :3000 pcs per month

LNG is one of the most important energy sources in the world, LNG Dewars play an important role in the storage and transportation of natural gas. Our LNG cylinders use steel plates that meet international standards to ensure high product quality. The vacuum multi-layer winding technology reduces the loss during use. And the gasification system that comes with the bottle makes it more convenient for customers to use. The multi-grade testing process and the results of multiple tests ensure high product quality. We support customization of different specifications between 80L and 1000L to meet customers' needs.

Product Description

Hebei Runfeng LNG dewar bottles are mainly used to fill and store liquid natural gas for supply heat energy for rezidential and industrial places. Runfeng has been engaged in the production of dewar bottles for decades, with strong production strength and traceable enterprise history. We have a professional and experienced R&D and production team, committed to provide higher cost performance, better quality, more convenient use, and better pre-sale and after-sales service. At present, the cryogenic tanks and dewar bottles produced by our company have been insulated with high vacuum multi-layer winding insulation paper. It is lighter than the traditional process and has been widely recognised worldwide.

Main Features:

1. High vacuum insulation technology is applied to achieve higher cost performance.

2. Ultrasonic flaw detection, high quality inspection.

3. Complete with level gauge and pressure gauge and other necessary fittings

4. Famous brand pressure relief valve

Dewar Cylinder Main Technical Parameters:

Full Volume: 80L/100L/175L/195L/210L/232L/410L/500L/1000L

Work Pressure: 1.37MPa/2.3MPa/2.88MPa/3.45MPa

Inner Tank Design Temperature: -196℃

Shell Tank Design Temperature: -20℃~+50℃

Insulation: Vacuum with Multi-layer Wrapped

Stored Medium: LO2, LN2, LAr, LCO2, LNG

Inner Tank Material: SS30408 or SA240

Shell Tank Material: Q345R or SS30408

Qualification Certification:

ASME VIII DIV.1, CE PED/TPED, Russia EAC, China GB, ISO9001:2015

Specification

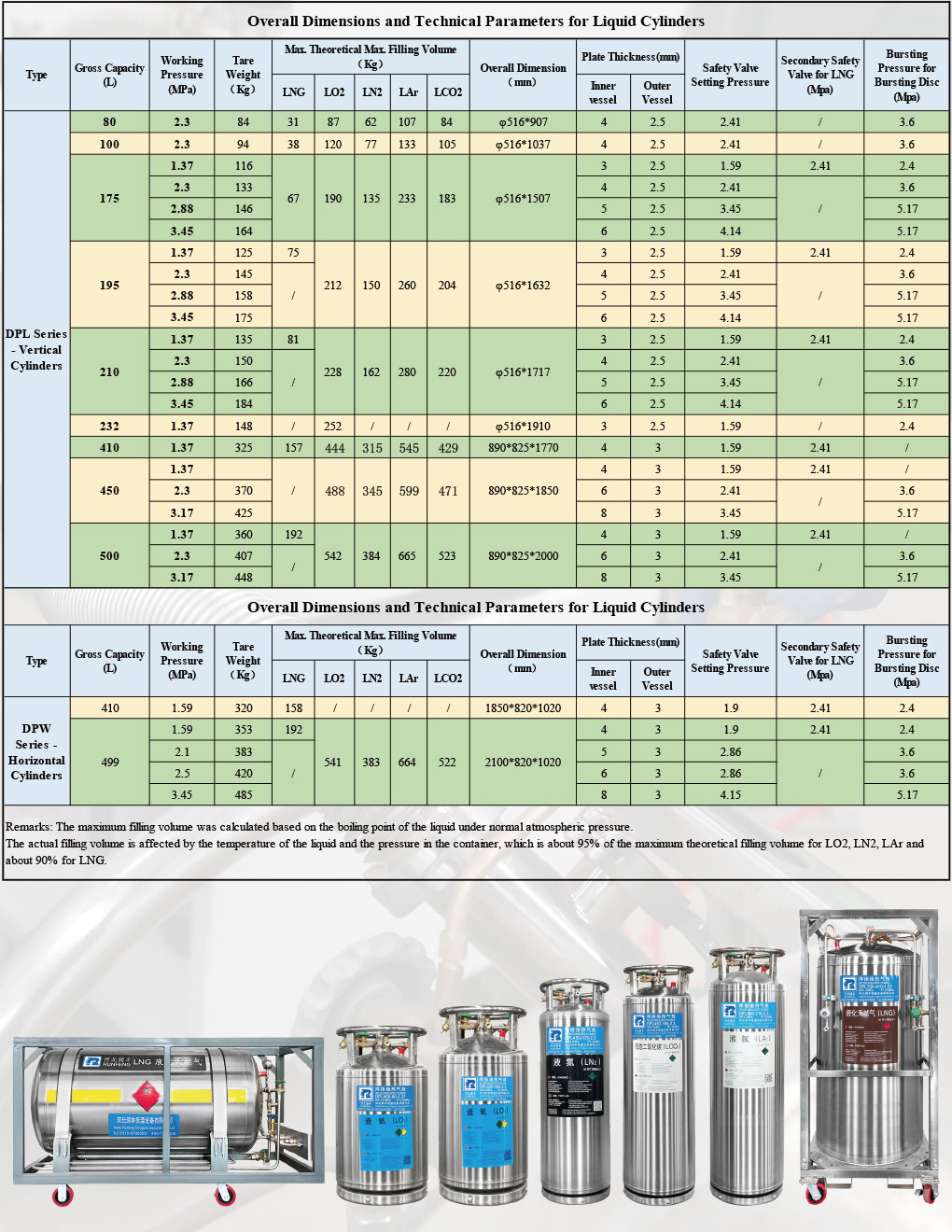

Overall Size and Main Technical Parameters
Type	Nominal volume (L)	Working pressure (MPa)	Empty weight （Kg）	Maximum theoretical liquid filling capacity（Kg）					Gas cylinder size （mm）	Safety valve （MPa）	Rupture disk （MPa）	Filling weight（Kg）（±2KG）
				LNG	LO2	LN2	LAr	LCO2				LO2	LN2	LAr	LCO2
DPL Series - Vertical Cylinders	50	2.3	76	19	53	37	65	51	φ516*747	2.62	3.6	50	34	60	/
	80	2.3	85	31	87	62	107	84	φ516*907	2.62	3.6	80	56	98	78
	100	2.3	95	38	120	77	133	105	φ516*1037	2.62	3.6	100	70	123	97
	175	1.37	116	67	190	135	233	183	φ516*1507	1.59	2.4	175	121	213	169
		2.3	133							2.41	3.6
		2.88	146							3.45	5.17
		3.45	164							4.14	5.17
	195	1.37	125	75	212	150	260	204	φ516*1632	1.59	2.4	196	136	239	190
		2.3	145	/						2.41	3.6
		2.88	158							3.45	5.17
		3.45	185							4.14	5.17
	210	1.37	135	81	228	162	280	220	φ516*1717	1.59	2.4	207	144	252	200
		2.3	150	/						2.41	3.6
		2.88	166							3.45	5.17
		3.45	191							4.14	5.17
	230	2.01	180	85	244	170	298	237	φ666*1333	2.41	3.6	236	164	288	229
	240 (small cart)	1.37	185	84	242	168	295	234	8008001248	1.59	2.41	242	168	295	234
		2.3	213	/						2.62	3.6
		3.17	240							3.45	5.17
	410	1.37	325	157	/	/	/	/	8908701770	1.59	/	413	287	504	400
	450	1.37		/	488	345	599	471	8908701850	1.59	/	453	315	553	439
		2.3	370							2.41	3.6
		3.17	425							3.45	5.17
	500	1.37	360	192	542	384	665	523	8908702000	1.59	/	486	338	593	471
		2.3	407	/						2.41	3.6
		3.17	448							3.45	5.17
	1000	2.3	1033	/	/	454	904	891	φ1200*2182	2.6	3.6	1009	702	1231	978
		3.45				297	764	828		4.0	5.4
DPW Series - Horizontal Cylinders	410	1.59	342	158	/	/	/	/	18508201020	1.9	2.4	413	287	504	400
	499	1.59	353	192	541	383	664	522	21008201020	1.9	2.4	503	350	614	488
		2.1	406	/						2.86	3.6
		2.5	420							2.86	3.6
		3.45	510							4.15	5.17
	1000	1.59	585	/	1664	1330	1882	/	210011721400	1.9	2.4	977	679	1192	947
Note: The maximum filling capacity is calculated based on the boiling point of the liquid under normal atmospheric pressure. The actual filling capacity is affected by the liquid temperature and pressure inside the container, which is about 95% of the maximum theoretical filling capacity, and about 90% for natural gas.

Detailed Images

LNG bottle

S30408 Refined Polish

Each of our cylinder must strictly go through degreasing and refined polish.

Digitail level gauge Optional

we provide digital level gauge for option, which is show by precision percentage.

Anti-Shock Rubber Cushion

The thicken rubber cushion can greatly prevent the inner container from any sudden shock and bufferthe impact.

cryogenic cylinders for LNG

25 layers of Vacuum insulated quilt

We use 25 layers of mutiple

thermal insulated quilt to ensure the vacuum effectiveness.

Protective ring.

Each of our cylinder has two protective rings to protect the brass vaporizer coils

and pressure built coils from any deformation

Firm Foundation Structure.

Our DPL-450L&410L serials are all fabricated by bolts and nuts with strong frame foundation.

LNG tanks

Certifications

ASME VIII DIV.1, CE PED/TPED, DOT,Russia EAC, China GB, ISO9001:2015,ISO13485:2016, ISO14001:2015, ISO45001:2018

LNG bottle
